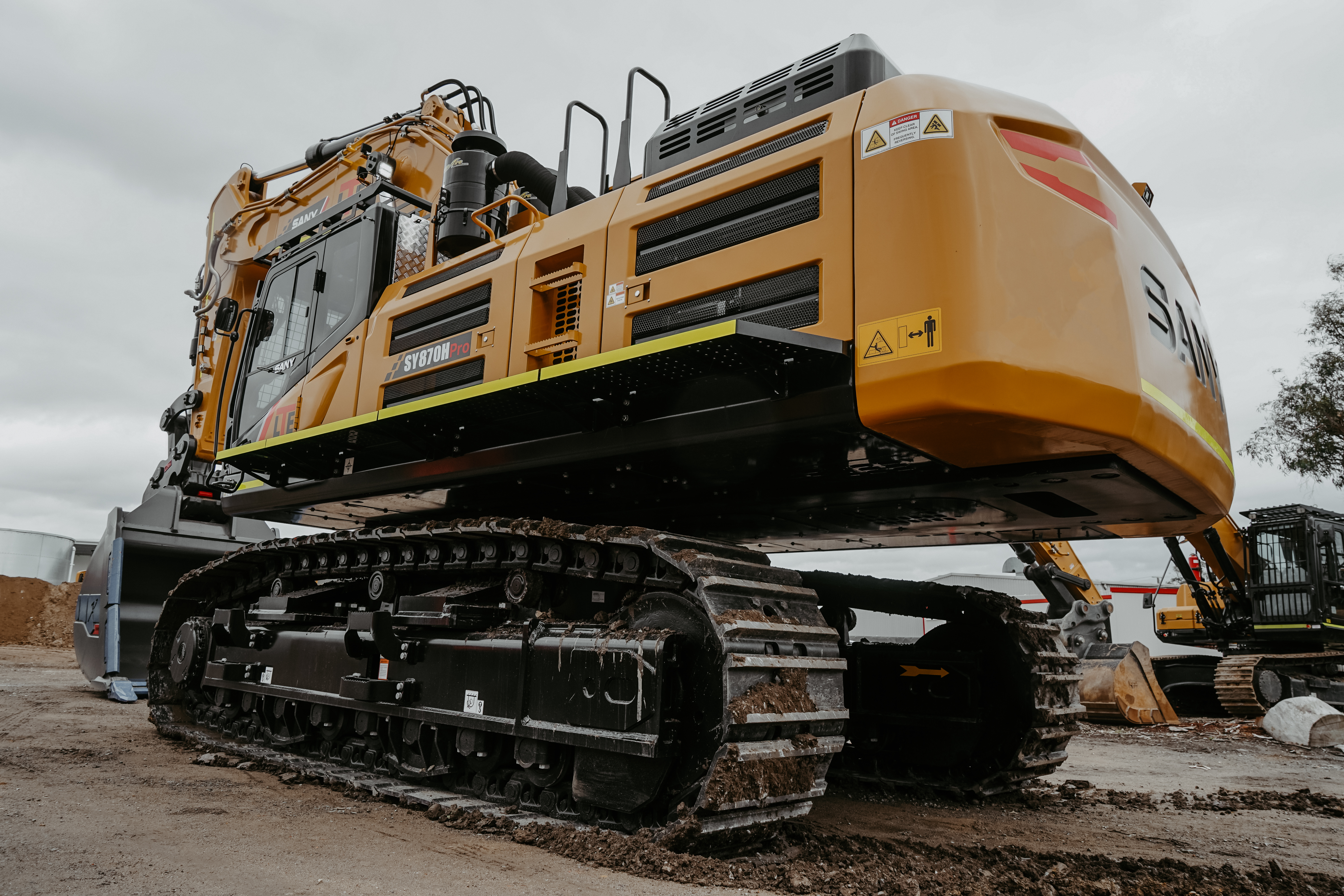

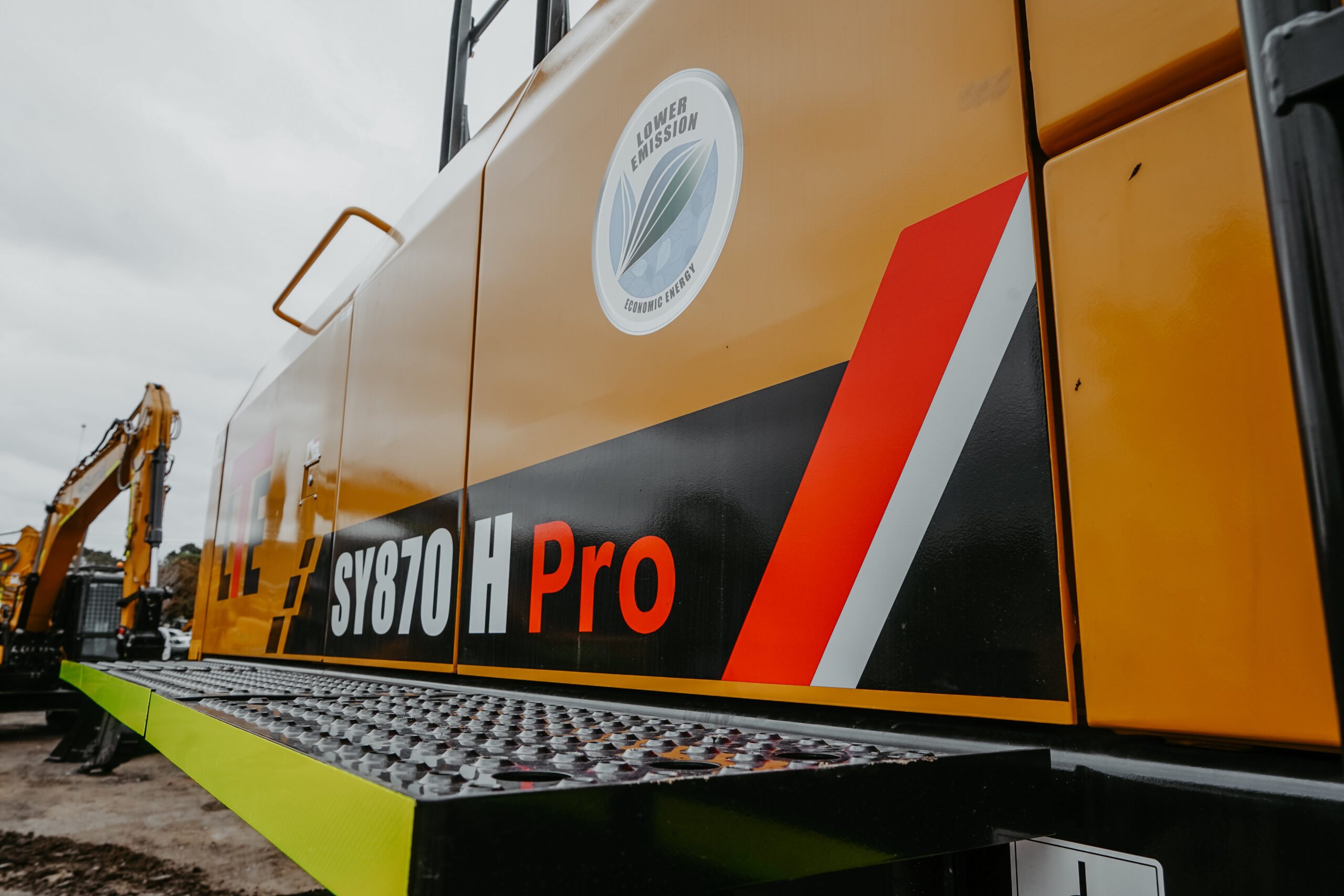

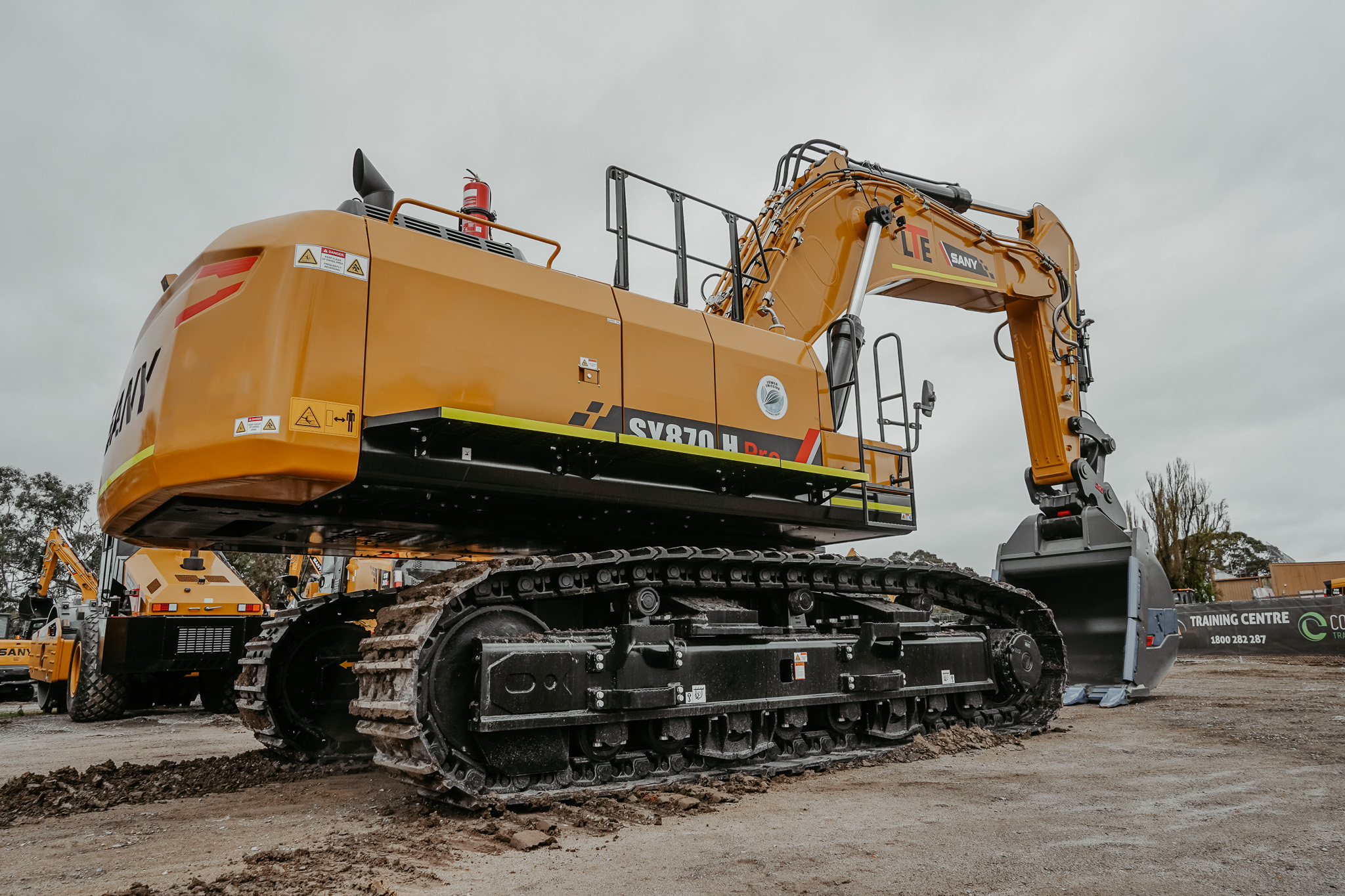

SANY SY870H Pro – Built for New Zealand’s Toughest Jobs

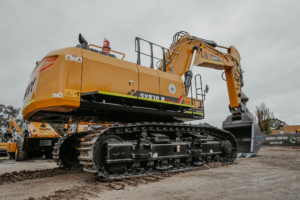

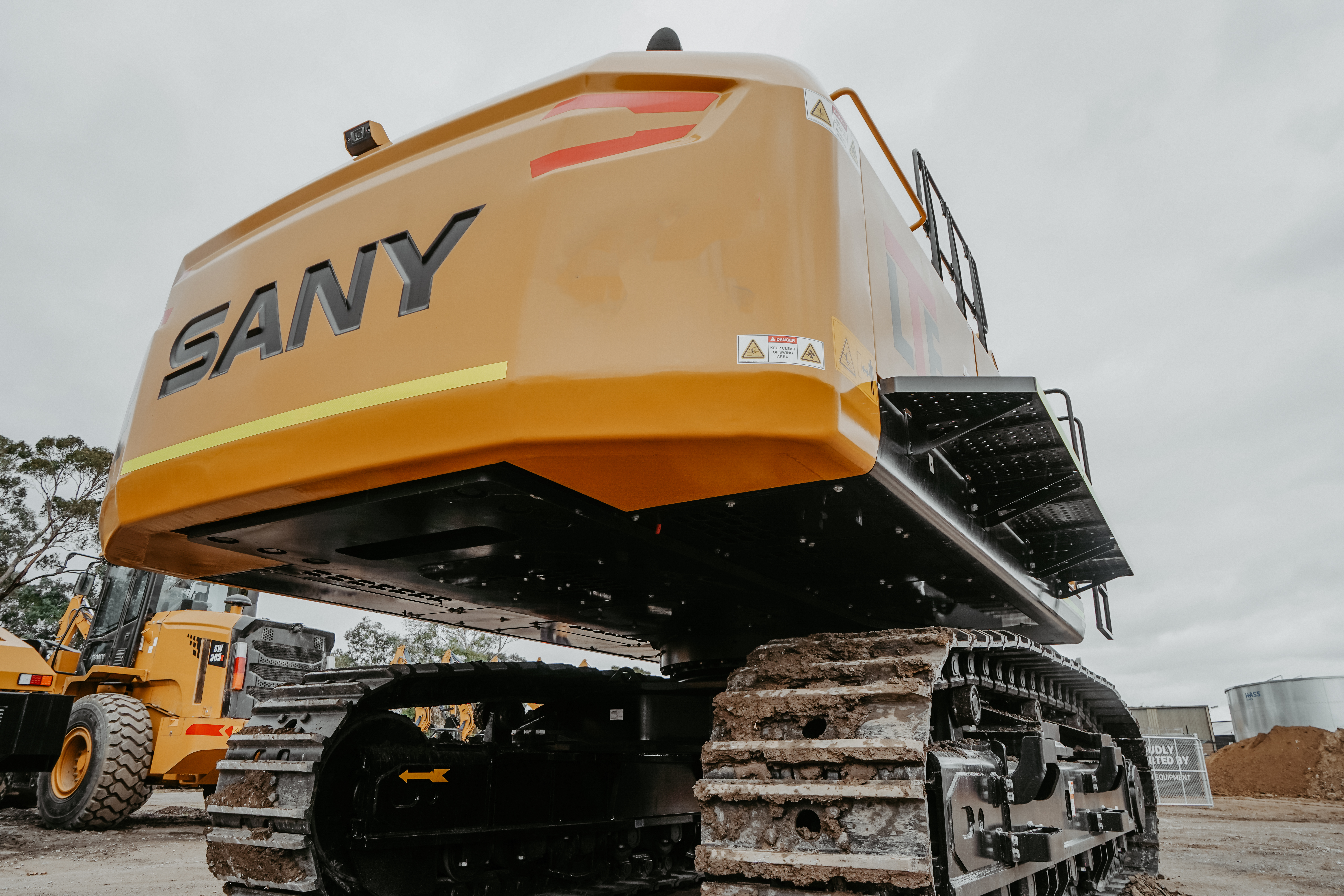

The SANY SY870H Pro is a next generation heavy duty excavator designed to take on New Zealand’s most demanding mining and quarrying environments. Engineered for power, precision, and endurance, this 78.6ton machine delivers exceptional performance across hard rock, iron ore, and large scale earthmoving applications.

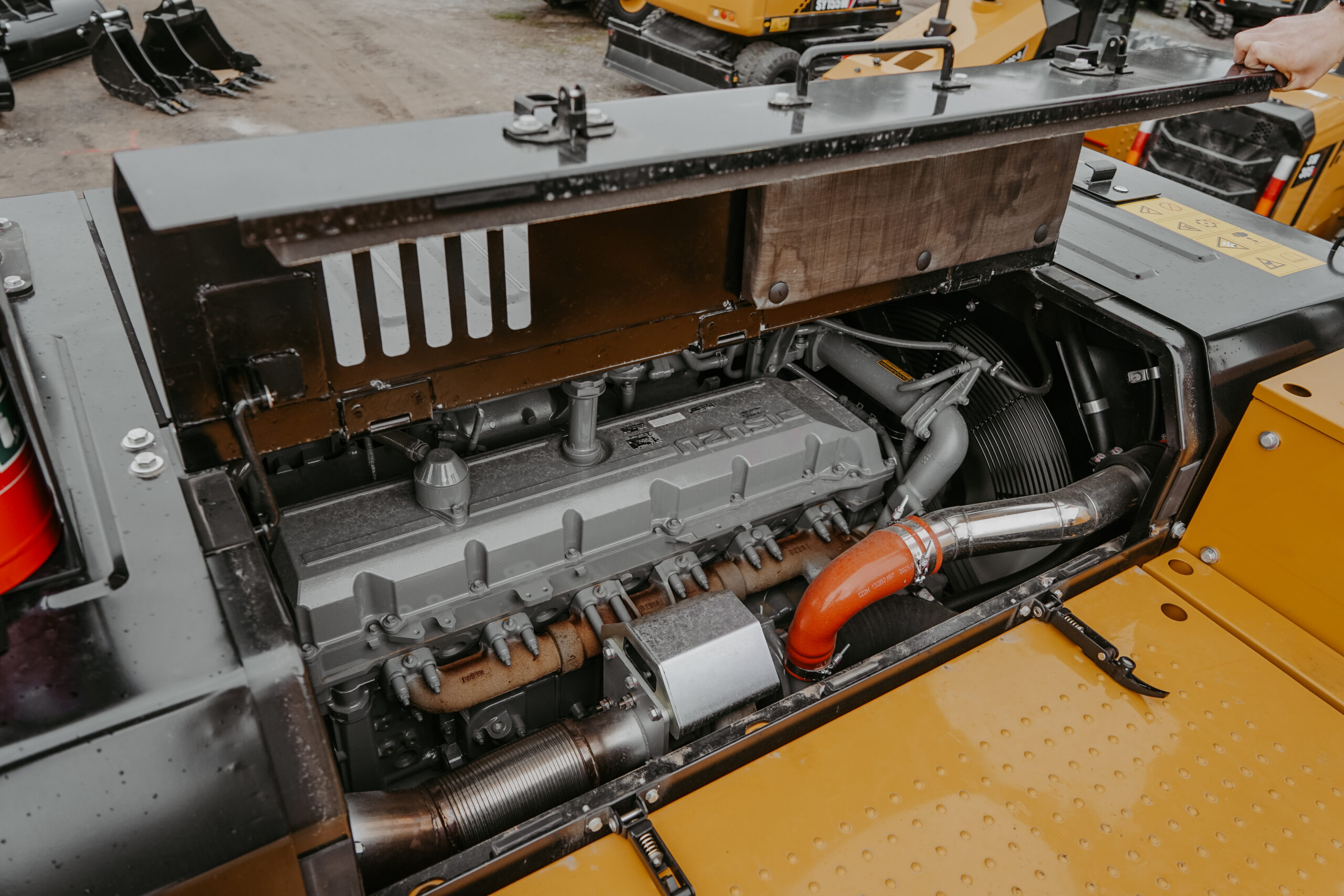

Driven by a custom built Isuzu 6WG1X engine producing 377 kW, and paired with SANY’s Dynamic Optimisation Intelligent Control System (DOMCS) and Kawasaki K3V280 electronically controlled hydraulic pump, the SY870H Pro achieves faster cycle times, improved fuel efficiency, and up to 40% greater digging performance. Every operation runs in the engine’s most efficient range, delivering maximum output with minimal fuel use.

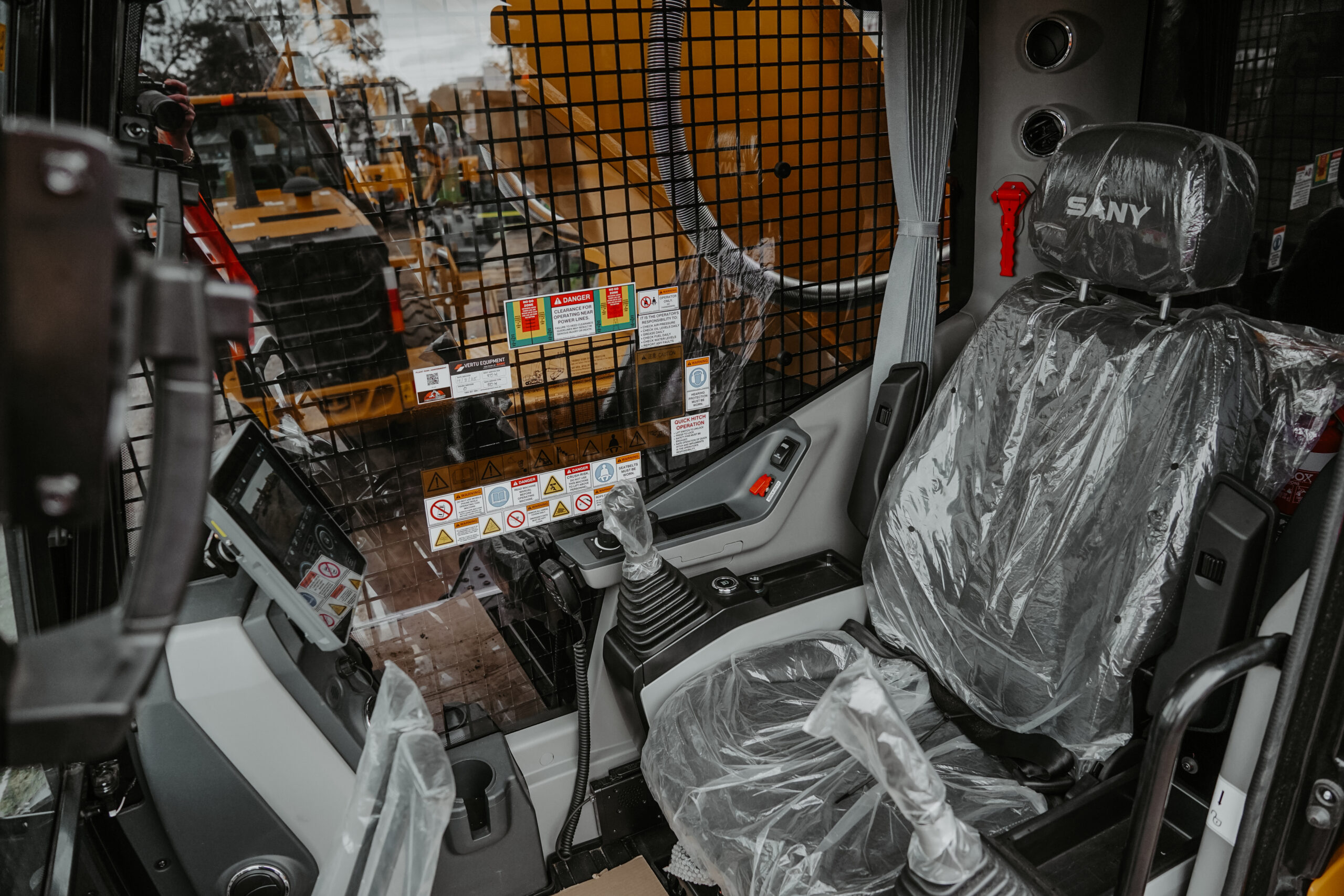

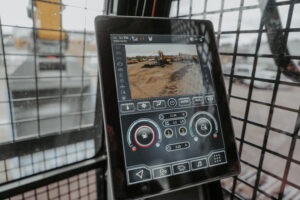

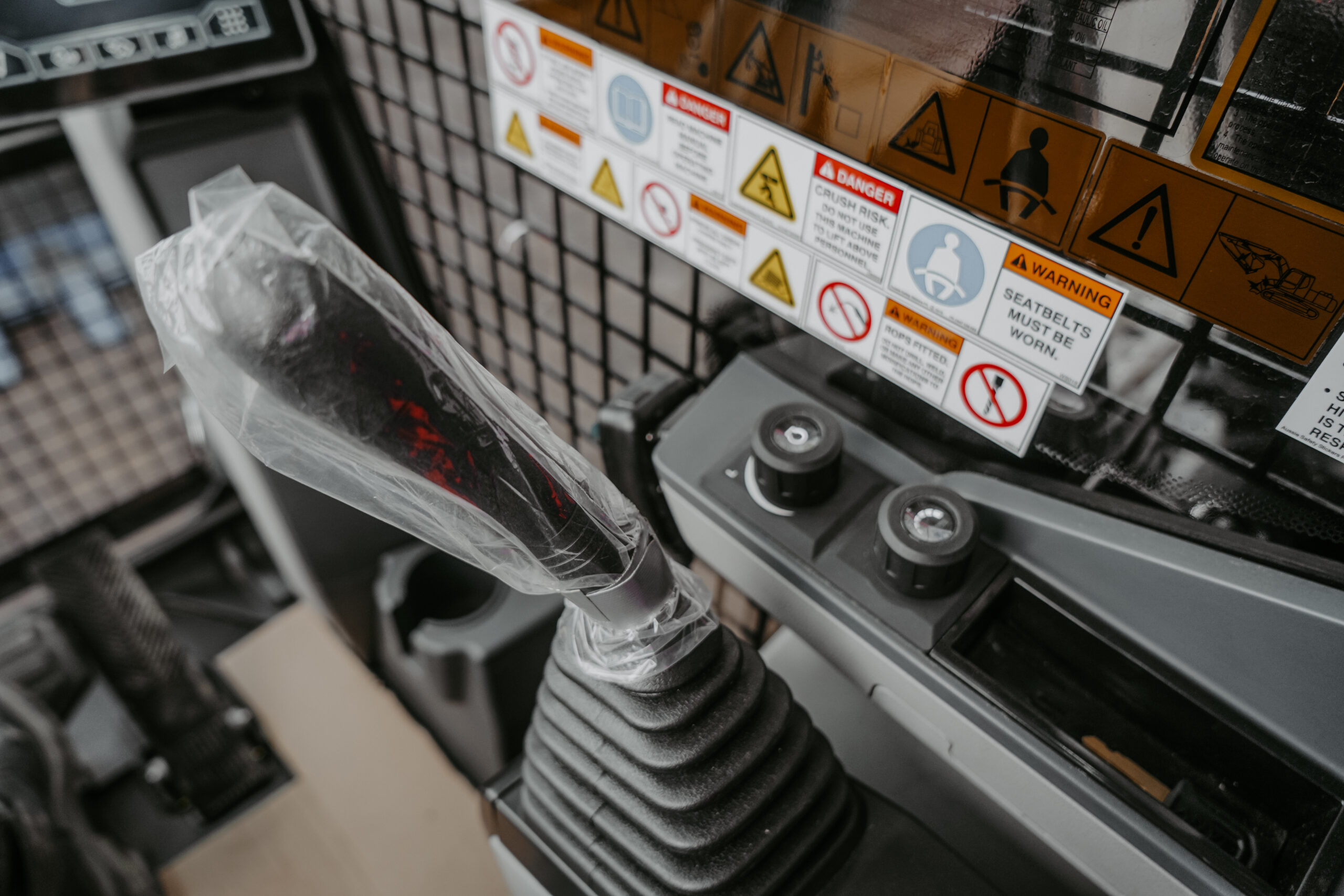

Built to go the distance, the SY870H Pro features reinforced high strength steel, forged boom and arm supports, and wear resistant Daewoo bucket teeth. Its automotive grade cab takes operator comfort to the next level, with a fully adjustable suspension seat, intelligent air conditioning, and a 7-inch touchscreen integrating Bluetooth, A/C, and performance controls.

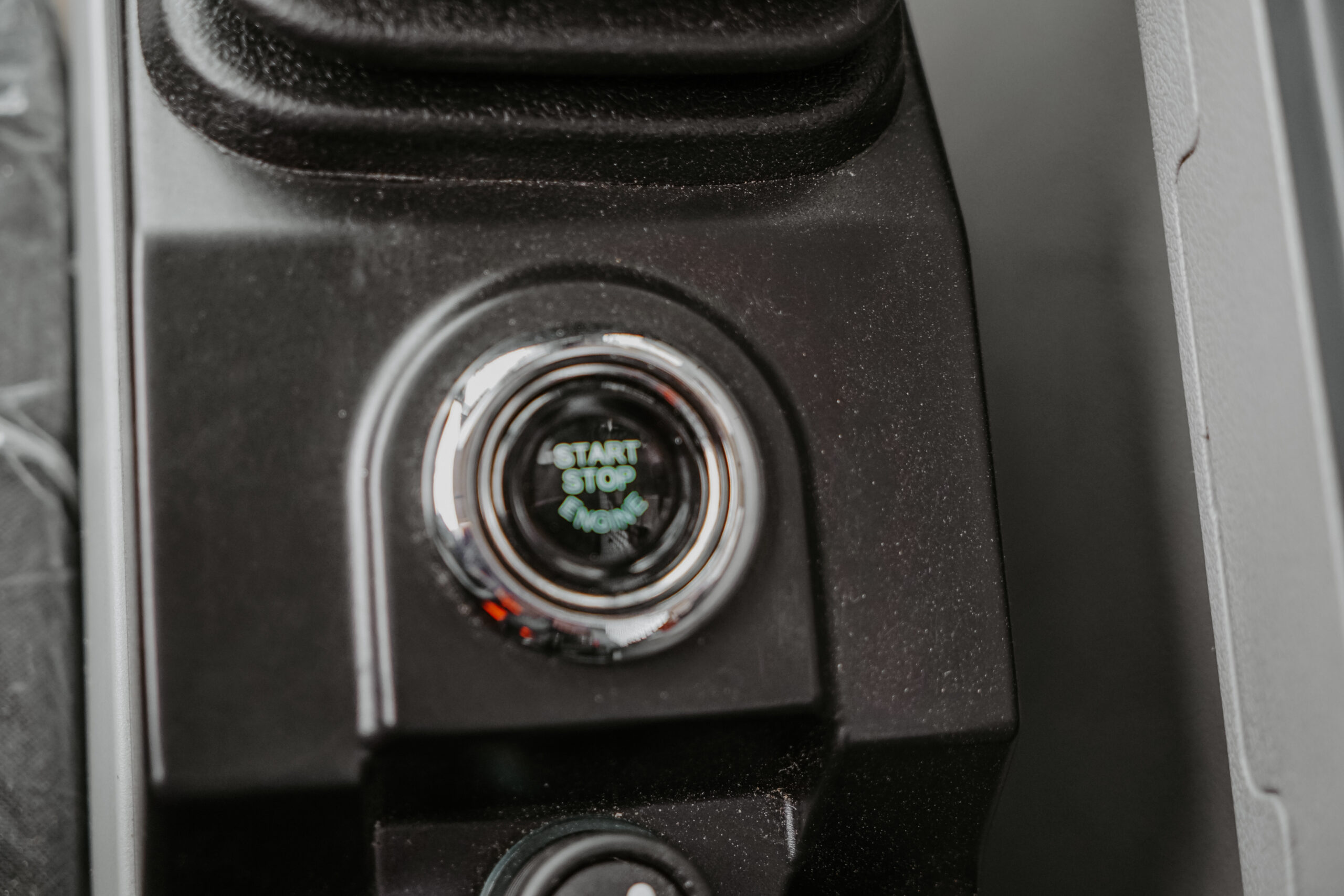

Safety and serviceability are built in, with a FOPS certified cab, rearview camera, emergency stop switch, anti slip platforms, and centralised maintenance points for faster servicing.

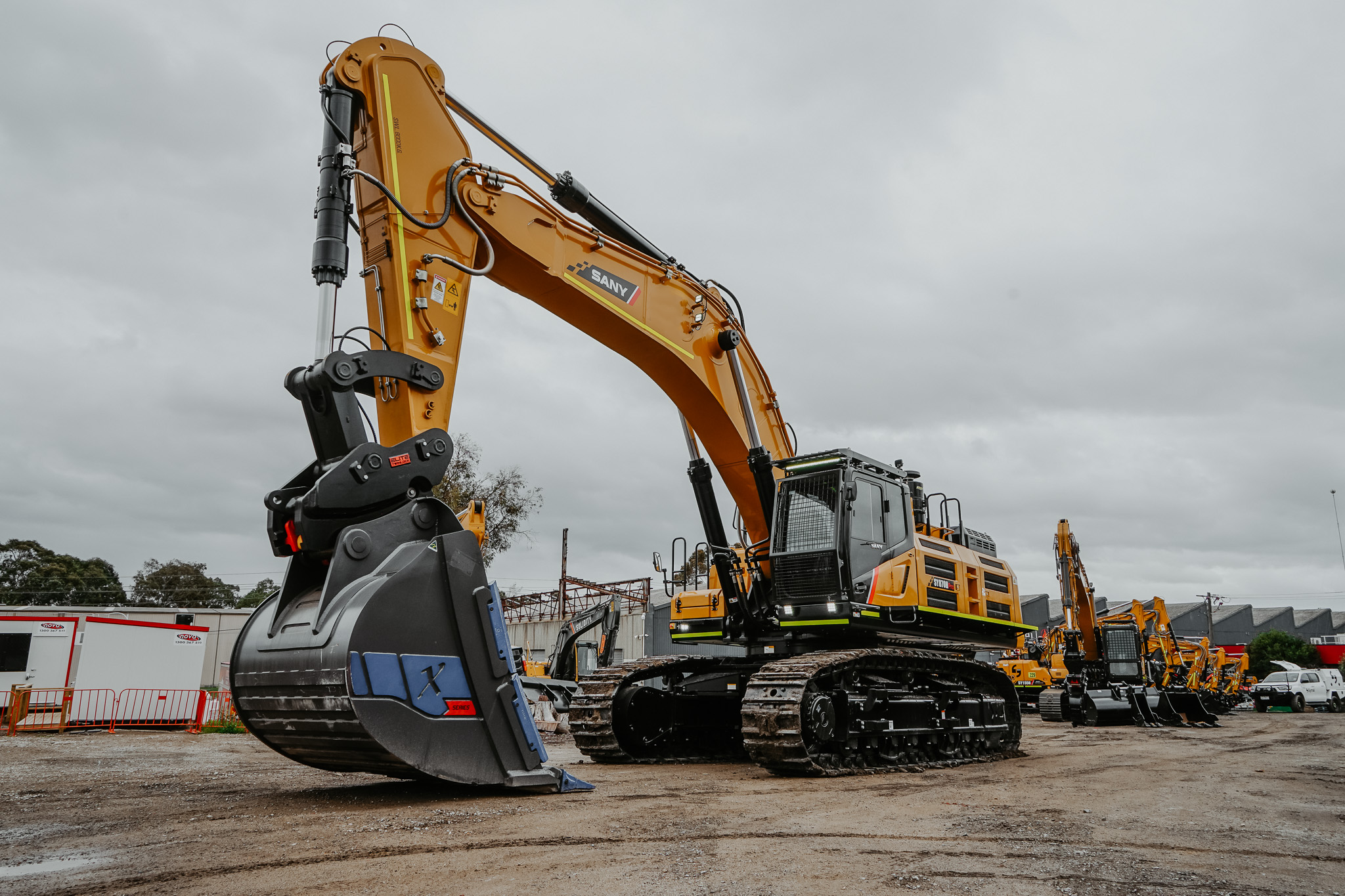

With a bucket capacity of up to 6.5 m³ and 432 kN of breakout force, the SY870H Pro is built to move serious material — delivering unmatched power, reliability, and efficiency for New Zealand operators.

Key Specifications:

• Operating Weight: 78,600 kg

• Engine: Isuzu 6WG1X, 377 kW

• Bucket Capacity: 5.0 – 6.5 m³

• Max Digging Depth: 7,247 mm

• Max Digging Reach: 11,703 mm

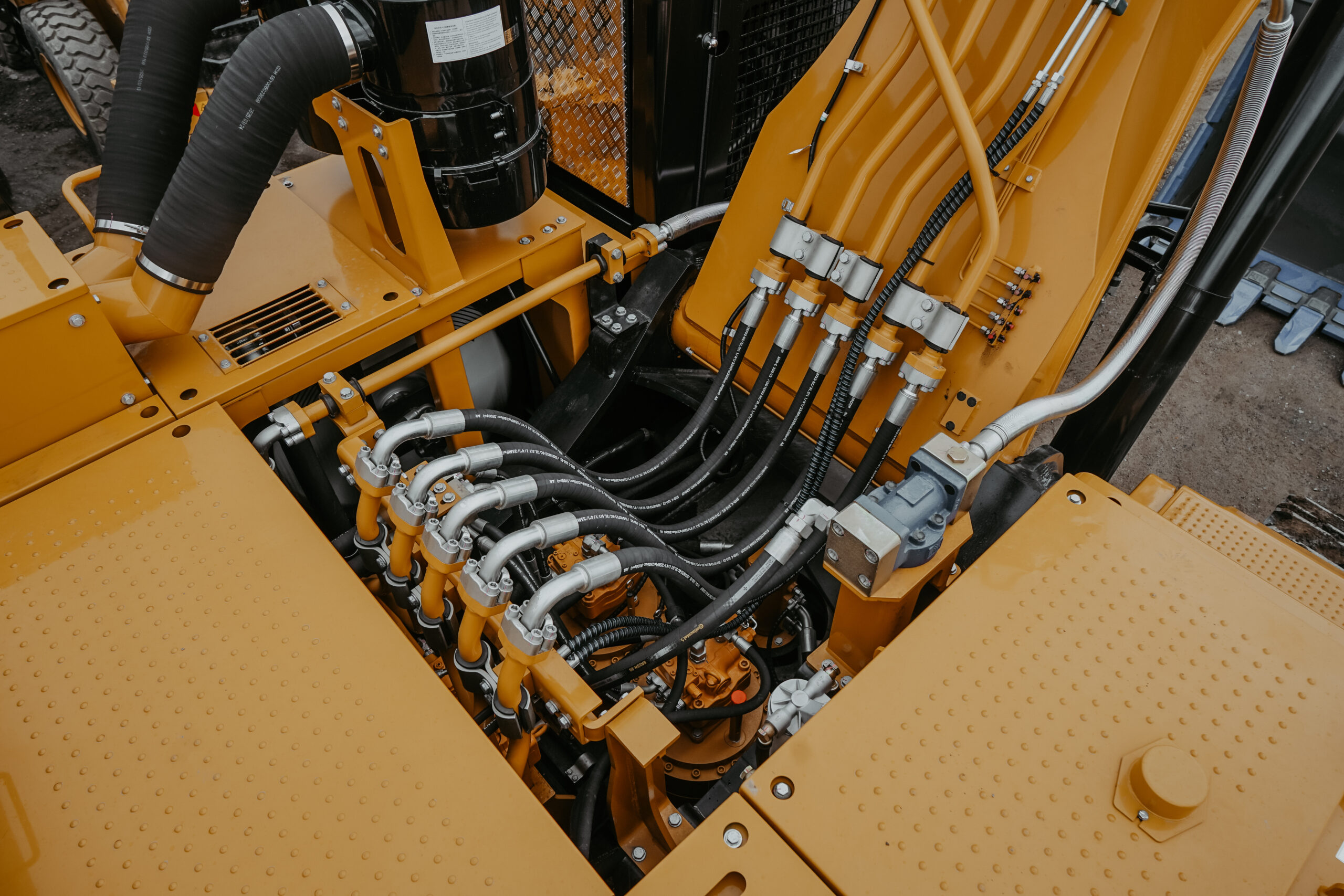

• Hydraulic System: Kawasaki K3V280 positive flow

• Cab: FOPS-certified with 7” touchscreen & intelligent A/C
