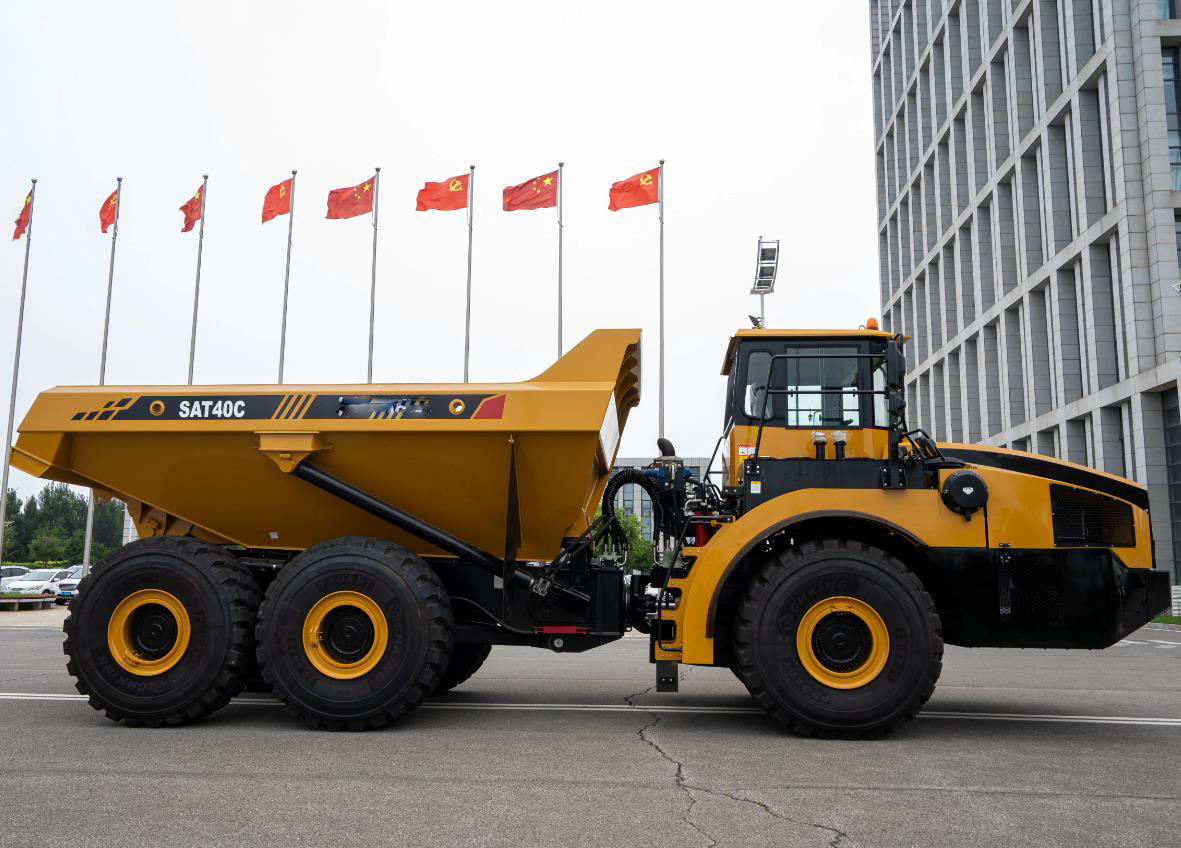

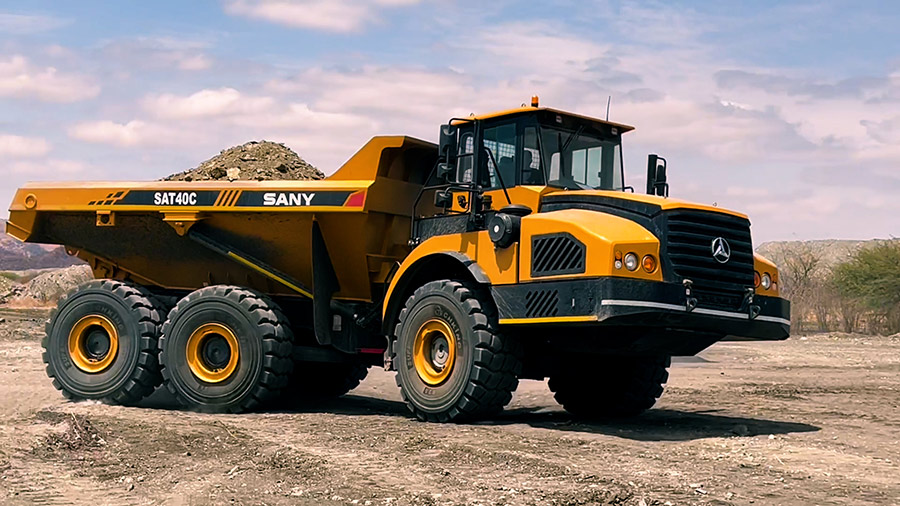

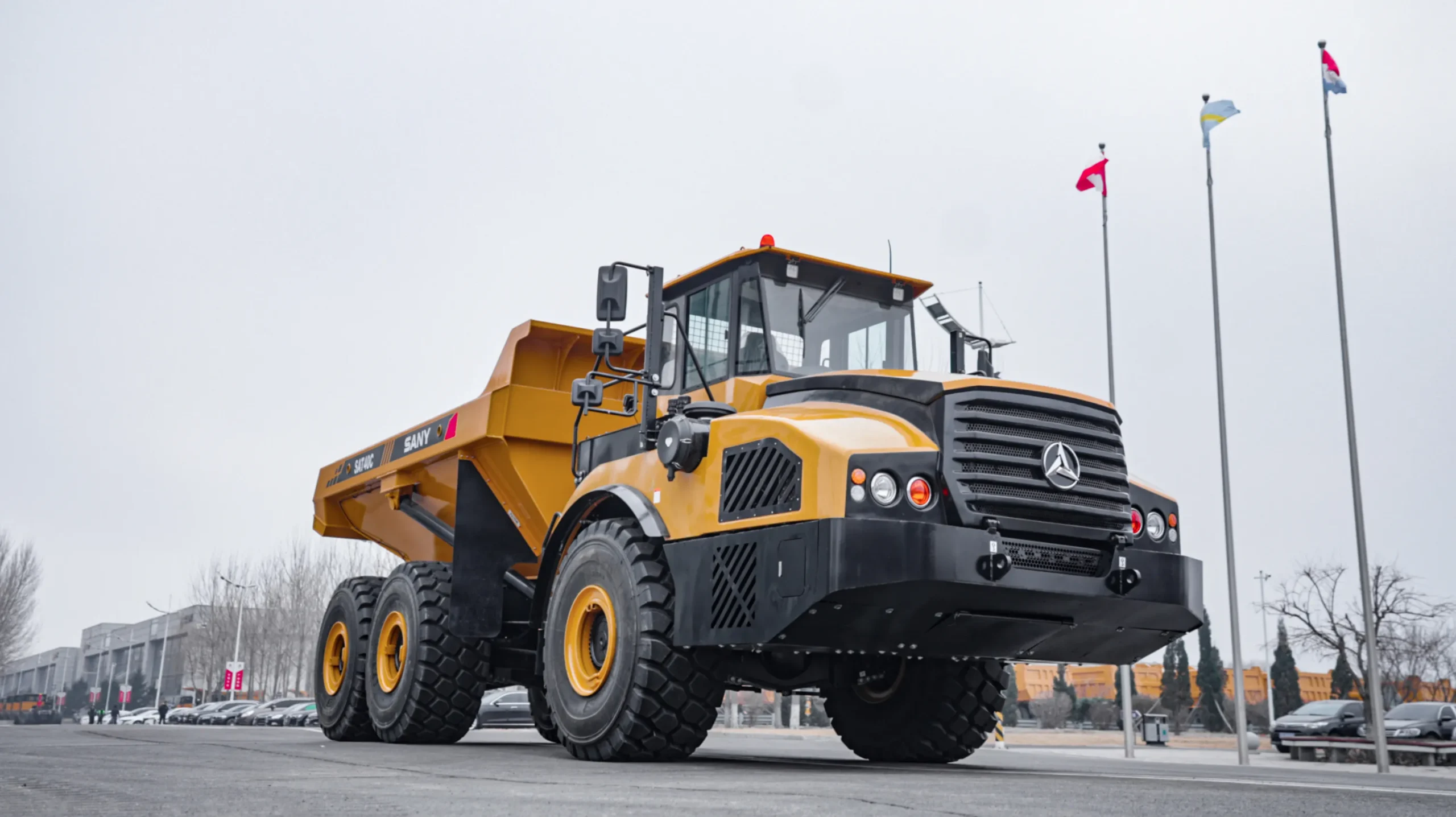

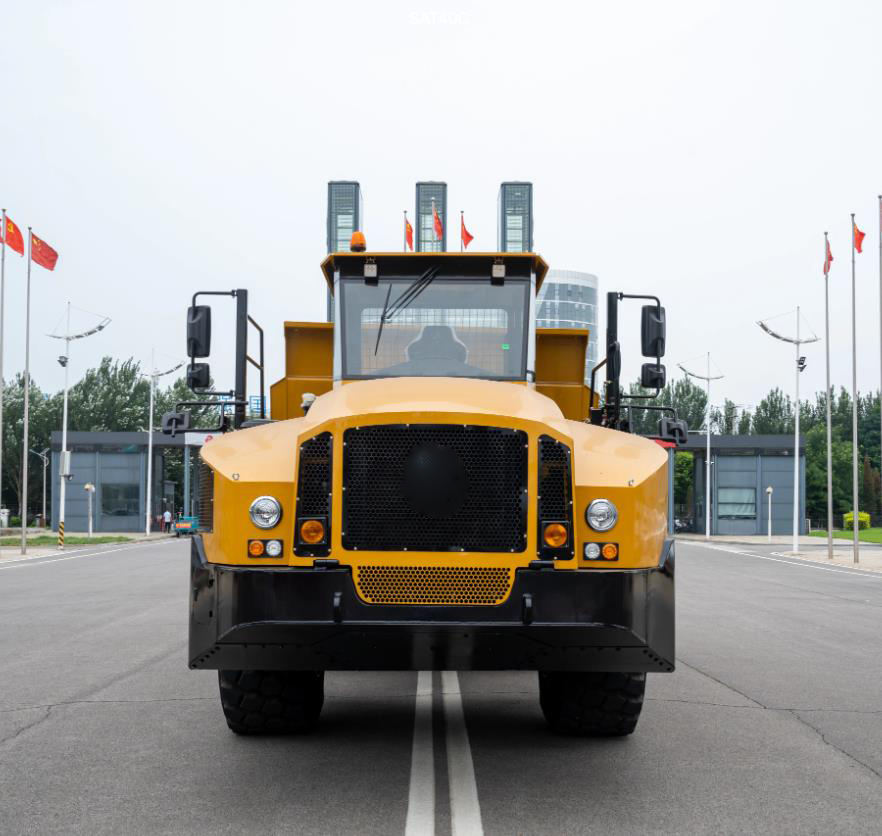

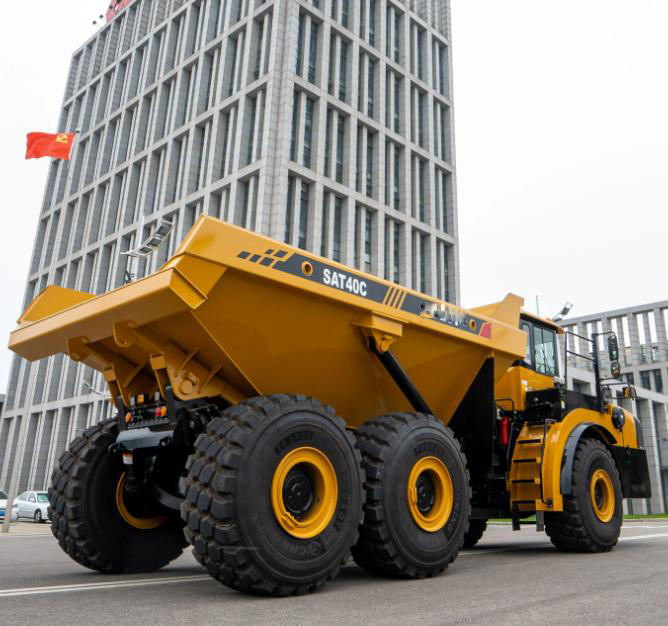

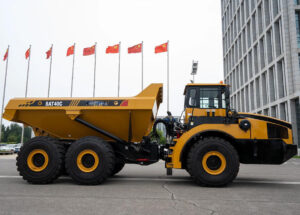

SANY SAT40C Articulated Dump Truck
The SANY SAT40C is a robust 41 tonne articulated dump truck engineered for demanding open pit mining operations. Designed to navigate New Zealand’s rugged terrains it combines powerful performance with exceptional durability making it an ideal choice for transporting materials efficiently across challenging mine sites.
Key Specifications
-
Payload Capacity: 41 tonnes
-
Gross Vehicle Weight: Up to 75 tonnes
-
Engine: Weichai WP13G530E310 390 kW 523 hp
-
Maximum Torque: 2300 Nm
-
Top Speed: 44 km/h
-
Gradeability: 40 percent
-
Dump Body Capacity:
-
Struck 20 m³
-
Heaped SAE 2 to 1 25 m³
-
-
Dimensions: 11418 mm L × 3445 mm W × 4017 mm H
-
Minimum Turning Radius: 8950 mm
-
Tyres: 29 5R25 radial
Design & Performance Features
-
High Strength Frame: Constructed with box type high strength steel plates offering excellent impact resistance and durability
-
Suspension System: Features oil gas nitrogen suspension cylinders with variable damping ensuring smooth operation even in extreme environments
-
Dumping System: Equipped with a V type tilted body made of high strength wear resistant steel optimized for efficient material discharge
-
Braking System: Utilizes wet brakes with enclosed oil cooled multiple discs on all wheels providing reliable stopping power
-
Transmission: Comes with an automatic transmission for seamless operation
Operator Comfort & Safety
-
Cab Design: ISO 3471 certified featuring an integral four pillar tipping protection design adjustable cushioned seat luxury upholstery and a tilt-able and telescopic steering wheel
-
Noise Levels: The cab provides a sound exposure Leq equivalent sound level of less than 78 dB A when tested with doors and windows closed
-
Optional Equipment:
-
Automatic fire extinguishing system for engine
-
Automatic lubrication system for regular grease filling
-
Low temperature start up system for extremely cold regions
-
Heating type body using engine exhaust gas
-
Fast fuel fill for rapid refuelling
-
High pressure alarm detection
-
Automatic weighing system for real time load monitoring
-
Tire pressure monitoring system
-
The SAT40C is designed to meet the specific challenges of New Zealand’s mining industry. Its powerful engine durable frame and advanced features ensure reliable performance in demanding conditions making it a valuable asset for operators seeking efficiency and longevity in their fleet.
