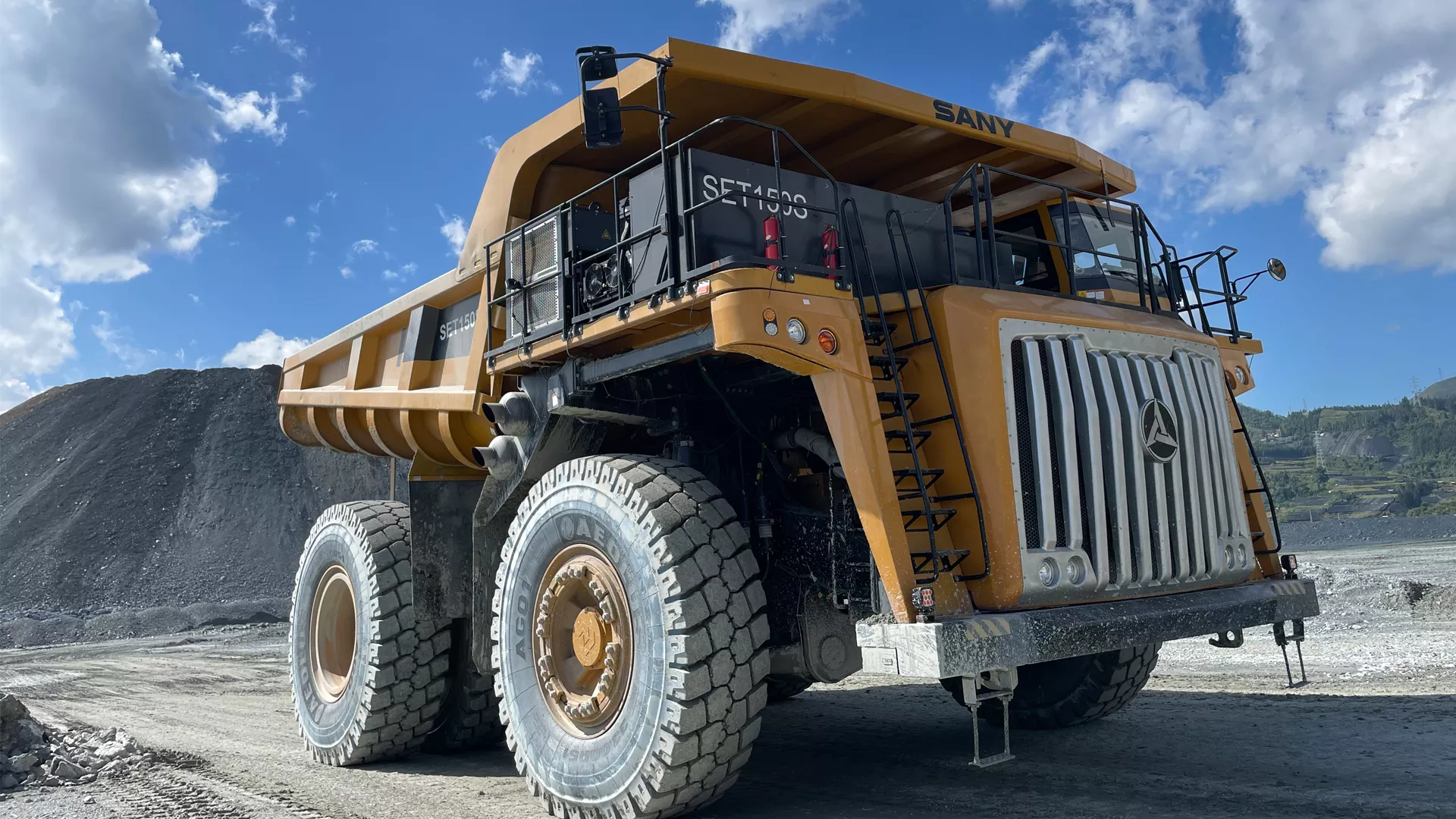

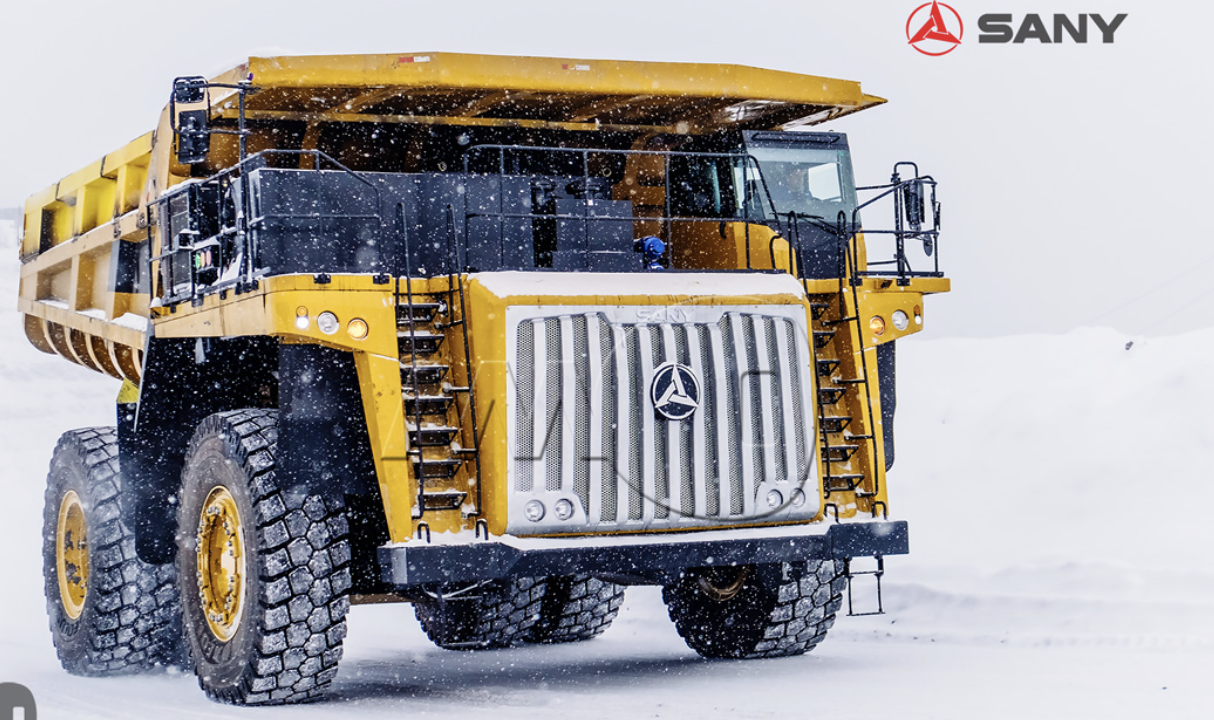

SANY SET150S Hybrid Diesel Electric Mining Truck
The SANY SET150S is a state of the art hybrid diesel electric off highway mining dump truck purpose built for heavy duty open pit operations. It is ideal for New Zealand mines seeking reliable and efficient hauling with reduced fuel consumption and emissions.
Key Highlights
-
Hybrid Diesel Electric Powertrain: Dual 565 kW Weichai WP17 or optional VOLVO diesel engines paired with an electric battery drive system deliver up to 1330 to 1430 kW total power and 3000 to 3500 Nm torque
-
High Payload and Mobility: Carries 136 to 150 tonnes with a 60 or 78 m³ struck or heaped body climbs gradients up to 30 percent and reaches speeds up to 65 km/h making it well suited for New Zealand’s rugged haul roads
-
Robust Frame and Suspension: High strength variable section welded frame with ROPS and FOPS certified cab independent suspension and stable hydraulic steering enhanced by an emergency accumulator
-
Advanced Braking and Control: Dual braking system electric and hydraulic provides safe load stabilisation during descent enhancing safety on steep grades
