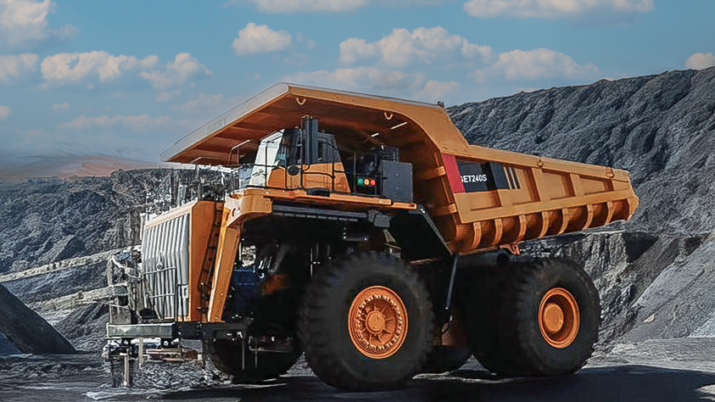

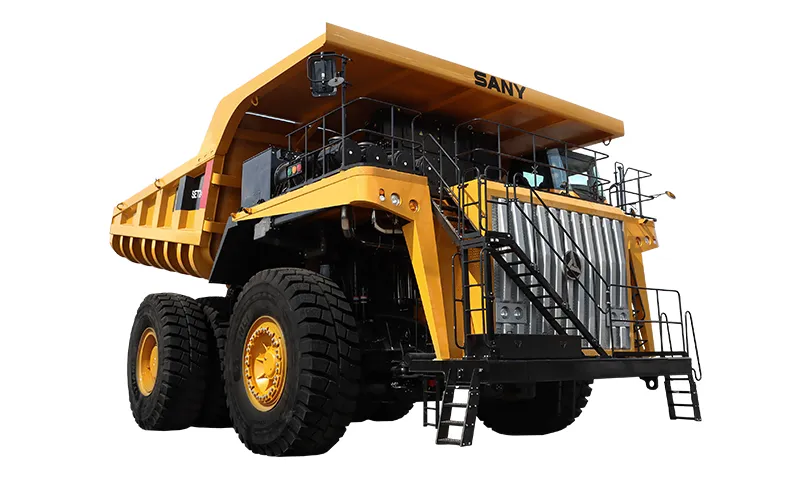

SANY SET240S Hybrid Diesel Electric Mining Truck
The SANY SET240S is a next-generation, high-capacity hybrid mining truck engineered for the most demanding open pit mining operations. With an enormous 220-tonne payload, cutting edge triple engine hybrid drive system, and industry leading braking and safety features, the SET240S is designed to meet the rugged haulage needs of New Zealand’s largest mining environments, while reducing fuel consumption and emissions.
⚙️ Key Specifications
-
Payload Capacity: 220 tonnes
-
Total Power Output: 2,091 kW (3 × Weichai WP17 engines at 697 kW each)
-
Top Speed: 60 km/h
-
Gradeability: 30%
-
Body Volume: 120 m³ (heaped)
-
Electric Braking Power: Up to 3,000 kW
-
Total GVW: 386,000 kg
Built for Reliability and Efficiency
-
Hybrid Powertrain: Delivers high output while reducing overall fuel consumption and wear — ideal for long haul, high duty cycle operations.
-
Advanced Suspension: Independent hydro pneumatic system offers enhanced stability, comfort, and ground contact on uneven terrain.
-
Intelligent Energy Recovery: Regenerative braking system recovers energy during deceleration, lowering energy costs and increasing efficiency.
-
Operator Safety & Comfort: Certified ROPS/FOPS cab, low cabin noise (<78 dB), and integrated smart monitoring systems provide a secure and user friendly environment.
-
High Strength Frame: Precision engineered, welded frame with large cross-sections for extreme durability and extended service life.
Ready for New Zealand’s Harshest Sites
The SET240S is purpose built for deep pit mining and high volume haulage, making it a top contender for large scale New Zealand mining operations. Its hybrid drivetrain and intelligent systems align with New Zealand’s focus on efficiency, safety, and environmental responsibility, offering a future forward solution to traditional mine haulage.
