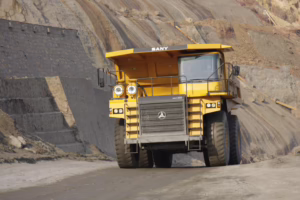

SANY SRT55D 55 Ton Off Highway Mining Truck
The SANY SRT55D is a robust 55 ton rigid mining truck engineered for medium duty open pit haulage. Offering a perfect balance of power, agility, and operator comfort, it is a strong fit for New Zealand mine sites featuring narrow haul roads, steep grades, and frequent load cycles.
Core Specifications
-
Payload / GVW: 55 t nominal with a gross vehicle weight of up to 95 t
-
Engine & Power: Volvo TAD1643VE B 16.1 L inline 6 diesel delivers 565 kW and 3 260 Nm torque
-
Speed & Grade Capability: Reaches up to 56 km/h and handles hills up to 30 percent
-
Body Volume: 26 m³ struck / 35 m³ heaped ideal for efficient bench to shovel movements
-
Dimensions: 9 155 mm L × 5 400 mm W × 4 505 mm H with 600 mm ground clearance
Engineering & Chassis Strength
-
High Strength Frame: Box section welding with cast steel reinforcements delivers excellent fatigue resistance and torsional rigidity
-
Steering & Suspension: Features a reinforced articulated bearing closed centre hydraulic steering with emergency accumulator and patented McPherson front suspension to reduce vibration and tire wear
-
Cooling & Hydraulic Systems: Advanced hydraulic layout keeps oil temps around 5 °C lower than similar units fully independent modules enhance serviceability
Braking Cab & Operator Comfort
-
Braking: Dry disc front and oil cooled wet disc rear brakes offer service parking retardation and emergency capabilities all sealed and durable
-
Safety Driven Cab: ISO ROPS and FOPS certified with a panoramic windshield reduced blind spots and noise levels below 78 dB A
-
Comfort: Cab ergonomics include intuitive controls mechanical suspension seat and vibration dampening design for reduced operator fatigue
The SRT55D combines rugged haulage capabilities with agility and operator comfort making it well suited to New Zealand’s challenging mining environments whether that is on narrow benches steep ramps or rough haul roads. Low maintenance hydraulics high strength chassis and strong service support ensure this truck can excel in Kiwi open pit operations.
