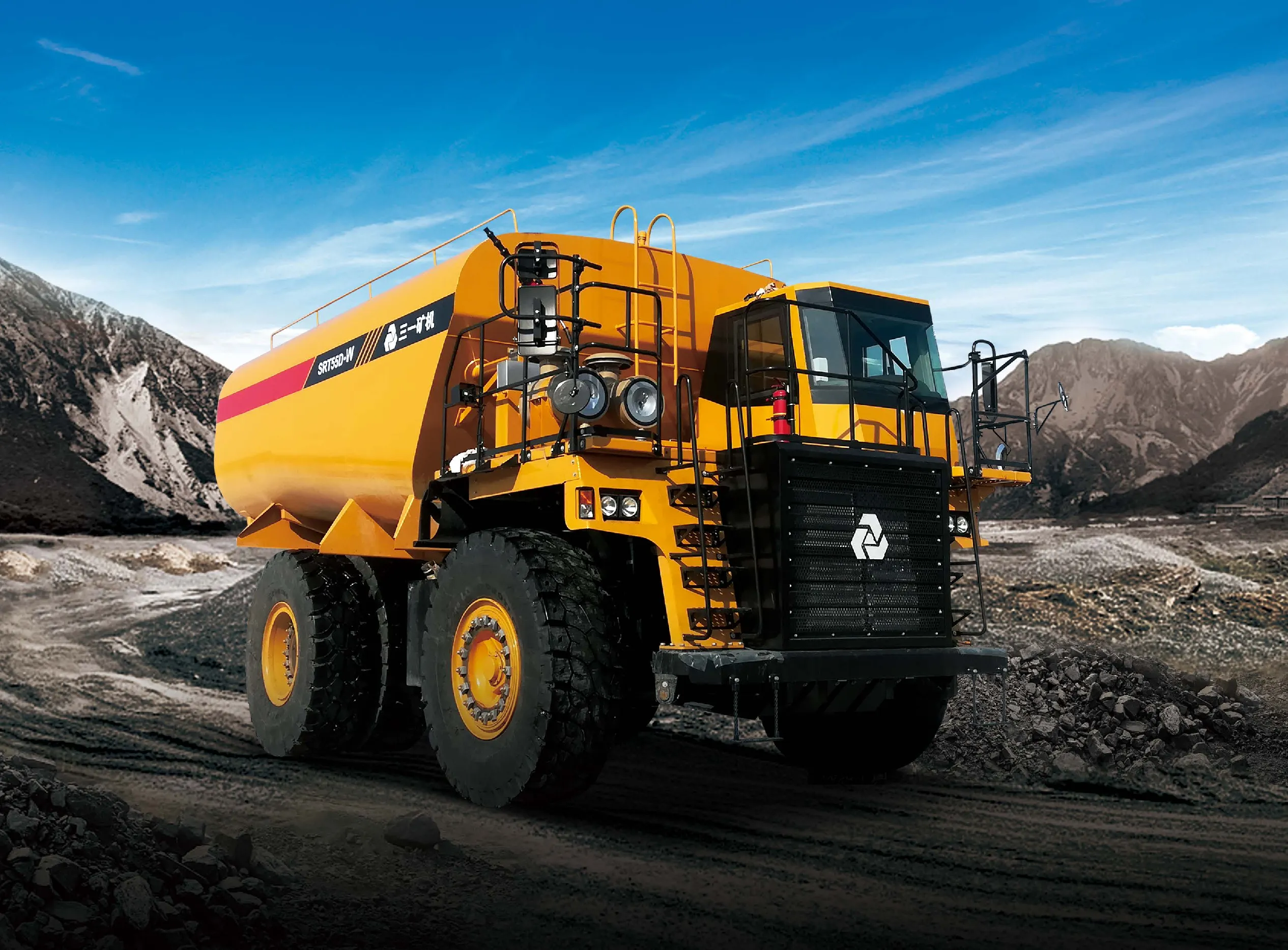

SANY SRT55D W 50 t Mining Sprinkler Truck
The SANY SRT55D W Mining Sprinkler is an integrated water-spraying solution built on a rugged 4×2, 50‑ton chassis. Designed for open-pit mining operations, it delivers efficient dust suppression and site conditioning—ideal for NZ haul roads and work areas.
Technical Highlights
-
Payload / GVW: 50 t / 95 t
-
Engine: Volvo AD1643VE‑B 16.1 L inline‑6 turbodiesel – 565 kW, 3 260 Nm torque at 1 200 RPM
-
Max Speed / Gradeability: 53 km/h peak speed, handles up to 25 % grades Sany Global Images
Sprinkler System
-
Tank Capacity: 55 m³ geometric, 50 m³ usable water storage
-
Spray Performance: 1 800 L/min flow rate; applies 0.25–1.0 L/m² across 10–20 m width; efficiently covers 2–6 km per tank
Chassis & Controls
-
Frame: Full box-section carrier with reinforced beam structure for high rigidity and durability
-
Steering: Full-hydraulic closed-centre with emergency accumulator for two steering cycles even after engine shutdown
-
Brakes: Dry front discs, oil-cooled wet rear discs, plus emergency stop button that activates dual brake circuits
Operator Comfort & Safety
-
Cab Design: Spacious four-pillar, panoramic window ROPS/FOPS-certified cab; sound insulation meets ISO 6395 noise standards .
-
Drive Comfort: Balanced axle loads (48/52 % empty; 36/64 % loaded) and Bridgestone 24.00R35 deep pattern E-4 tyres for stability.
Why It Works for NZ Sites
With substantial water capacity, wide spray range, and smart site-distance performance, the SRT55D W ensures efficient dust suppression and surface conditioning. Built on a mining grade chassis with emissions compliant Volvo engine and all-weather mobility, it’s tailored to meet NZ’s health, safety and environmental standards, and rugged haul road conditions.
